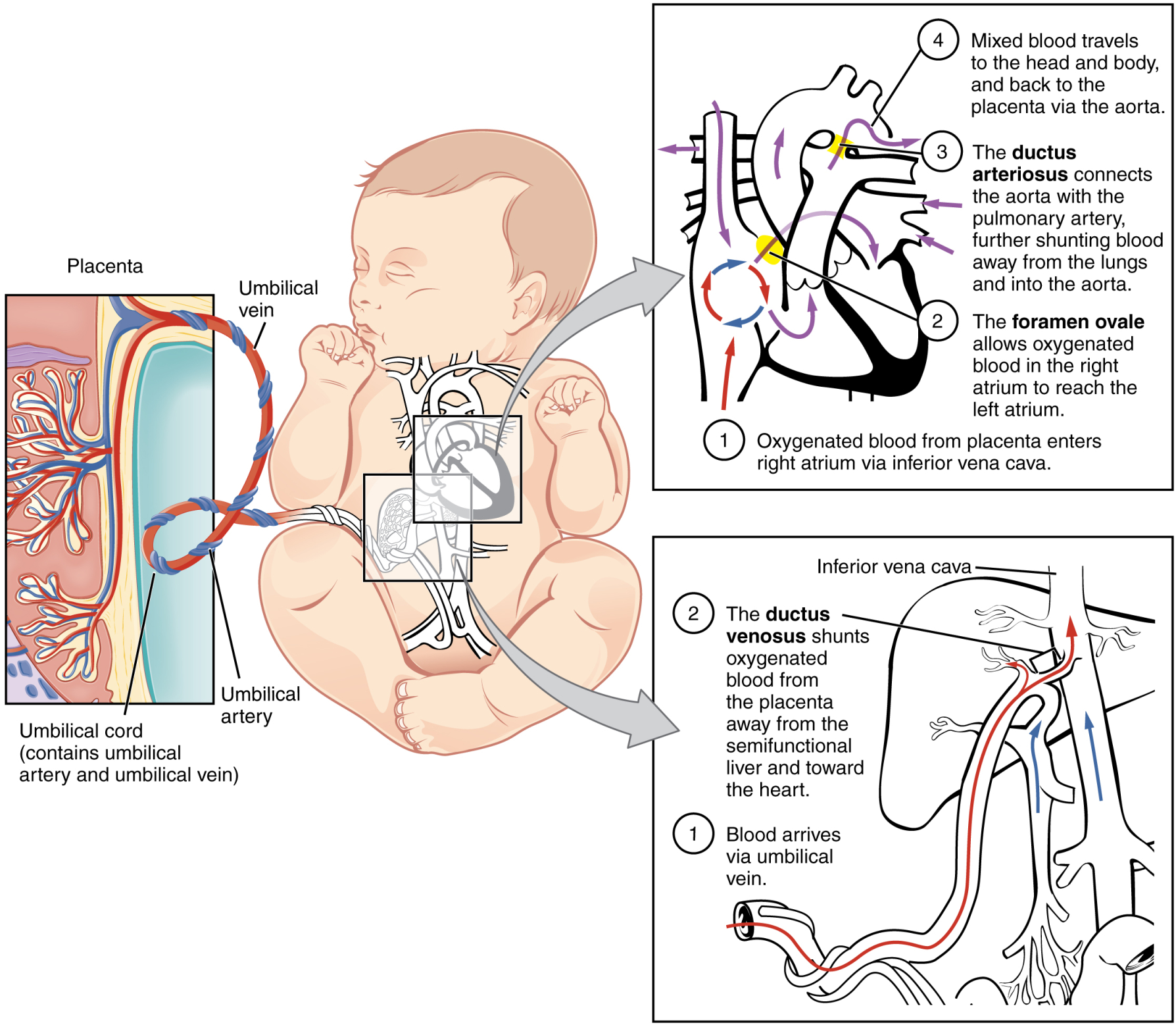

Locate ductus arteriosus on this anatomical reference. Read the original plate labels to confirm the view and adjacent structures.
Zoom in, then drag to inspect. Keyboard: + / − to zoom, arrows to pan, 0 to reset. Tap the numbered markers to explore parts.

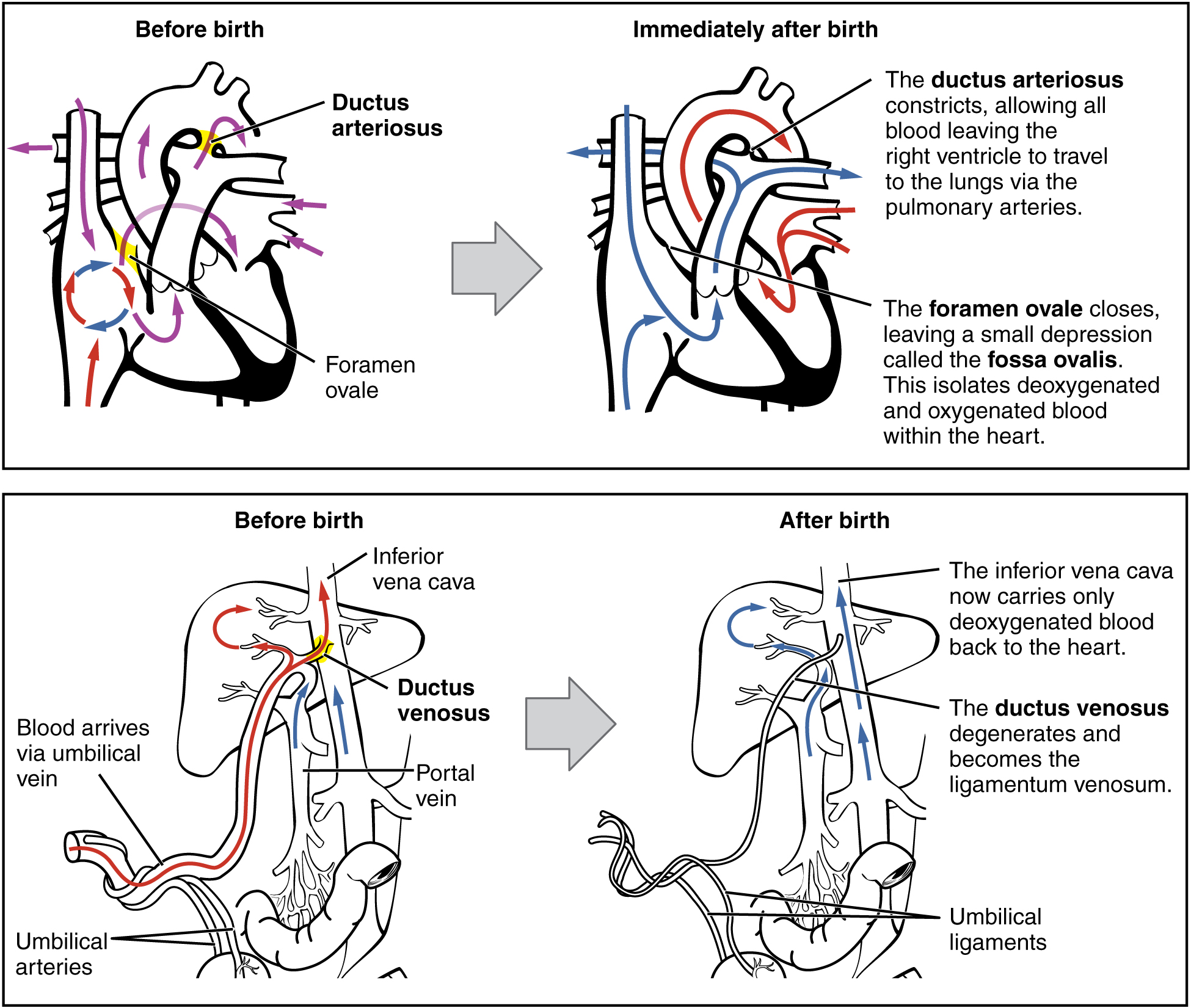

neonatal circulation: labelled anatomical figure. Original source colours and labels retained.
Image: OpenStax / University of Hawaiʻi adapted teaching figures; original contributors credited at source · Source / original · CC BY 4.0 — figure credits at sourceNumbered markers and focused views are Mediveerse learning overlays; the original reference is linked above.
Circulatory transition at birth
Understand what you see.
Reorganises fetal circulation into separated pulmonary and systemic circuits after birth.
Zoom into the original labels. Practise pointing out each structure, then explain it aloud. Diagrams are teaching references; specimen appearance and slide staining vary.
How to recognise it.
- Lung expansion lowers pulmonary resistance
- Placental separation changes systemic circulation
- Atrial pressure relationship changes
Point them out.
Tap a number to open its reference, zoom in and locate the structure. Numbers stay the same across views. This key follows landmarks visible in the reference images.
Think first. Then reveal.
Say your answer aloud before opening the suggested response.
01How do you identify circulatory transition at birth?+
Lung expansion lowers pulmonary resistance. Placental separation changes systemic circulation. Atrial pressure relationship changes.
02Why does the foramen ovale close functionally?+
Increased pulmonary venous return raises left-atrial pressure relative to right, apposing its flap; anatomical fusion is later and variable.
03Name classic adult shunt remnants.+
Ductus arteriosus becomes ligamentum arteriosum; ductus venosus becomes ligamentum venosum. The fossa ovalis marks the interatrial region.
04Which structures should you point out on this reference?+
Foramen ovale flap; Ductus arteriosus; Umbilical vessels. Reorganises fetal circulation into separated pulmonary and systemic circuits after birth.
