Locate palatine tonsil on this anatomical reference. Read the original plate labels to confirm the view and adjacent structures.
Zoom in, then drag to inspect. Keyboard: + / − to zoom, arrows to pan, 0 to reset. Tap the numbered markers to explore parts.

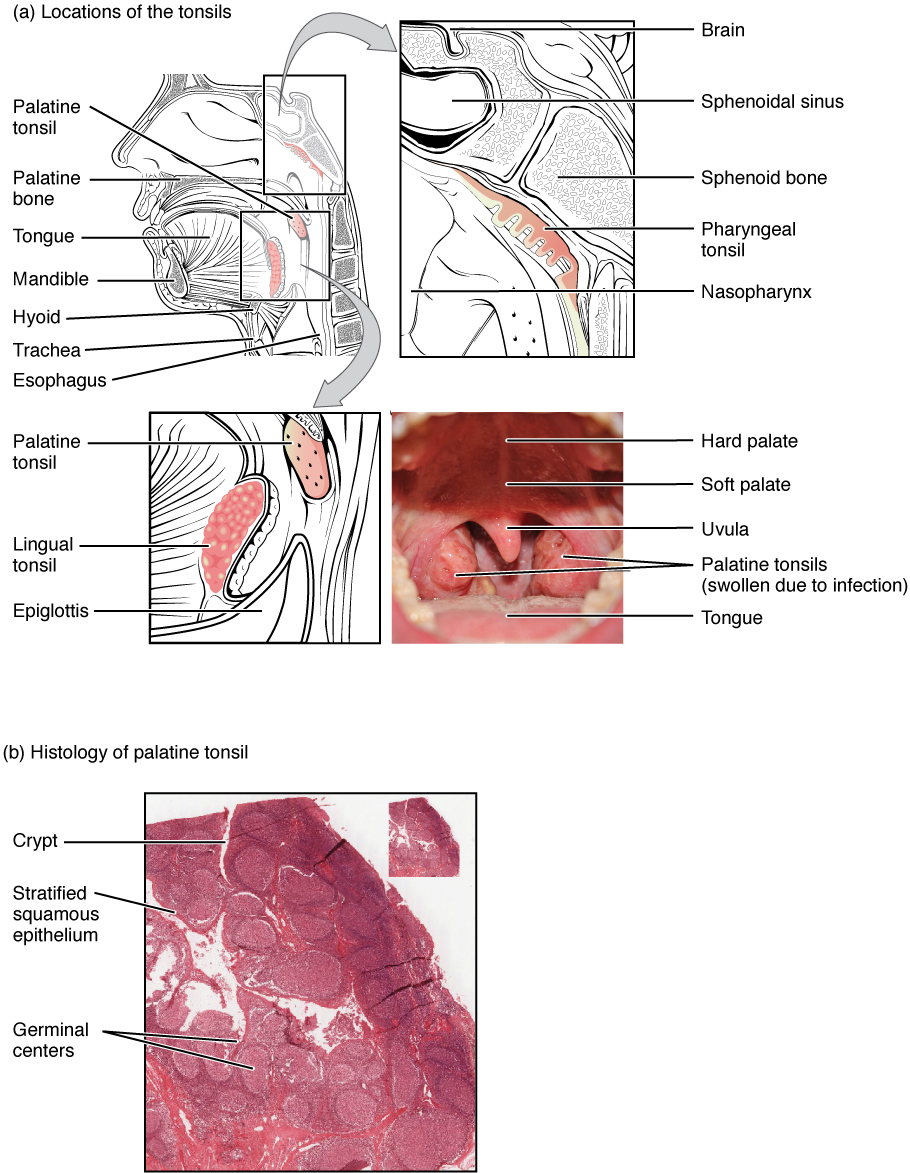

tonsils: labelled anatomical figure. Original source colours and labels retained.
Image: OpenStax / University of Hawaiʻi adapted teaching figures; original contributors credited at source · Source / original · CC BY 4.0 — figure credits at sourceNumbered markers and focused views are Mediveerse learning overlays; the original reference is linked above.
Palatine tonsil
Understand what you see.
Part of Waldeyer's lymphoid ring.
Zoom into the original labels. Practise pointing out each structure, then explain it aloud. Diagrams are teaching references; specimen appearance and slide staining vary.
How to recognise it.
- Lymphoid tissue in lateral oropharynx
- Between anterior and posterior faucial pillars
- Lateral surface relates to superior constrictor bed
Point them out.
Tap a number to open its reference, zoom in and locate the structure. Numbers stay the same across views. This key follows landmarks visible in the reference images.
Think first. Then reveal.
Say your answer aloud before opening the suggested response.
Examiner-style prompts: identify the structure, explain its relations, then answer the applied follow-up. These are revision questions, not authenticated past papers.
01Identify palatine tonsil and give its main role.+
Lymphoid tissue in lateral oropharynx. Between anterior and posterior faucial pillars. Lateral surface relates to superior constrictor bed. Part of Waldeyer's lymphoid ring.
02Name an important arterial contributor.+
The tonsillar branch of the facial artery is a major contributor; other regional arterial branches also contribute.
03Why can pain be referred to the ear?+
Shared glossopharyngeal sensory pathways link tonsillar/oropharyngeal and tympanic regions.
04Point out three important relations and explain their significance.+
Anterior: palatoglossal arch; Posterior: palatopharyngeal arch; Lateral: superior constrictor bed. Part of Waldeyer's lymphoid ring. Use the reference plate to locate the region; the relationship map organises the associations and is not drawn to scale.
Read the references.
Credited anatomical plates, microscopy and university teaching references. Individual image credits appear below the viewer. Historical plates can use older terminology; use the lesson text for current names.
