HISTOLOGY / REFERENCE GALLERY1 / 2 references

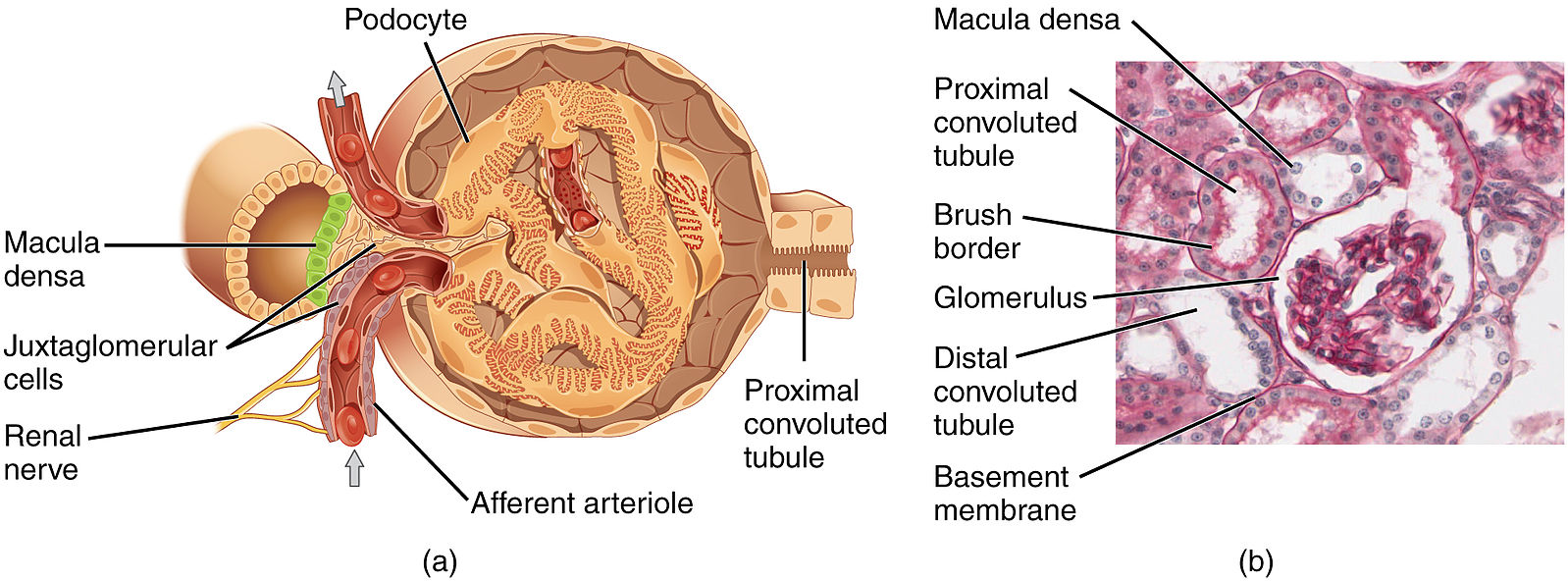

glomerulus: labelled anatomical figure. Original source colours and labels retained.
100%
1
Glomerulus

Locate glomerulus on this anatomical reference. Read the original plate labels to confirm the view and adjacent structures.

Zoom in, then drag to inspect. Keyboard: + / − to zoom, arrows to pan, 0 to reset. Tap the numbered markers to explore parts.

glomerulus: labelled anatomical figure. Original source colours and labels retained.

Image: OpenStax / University of Hawaiʻi adapted teaching figures; original contributors credited at source · Source / original · CC BY 4.0 — figure credits at source

Numbered markers and focused views are Mediveerse learning overlays; the original reference is linked above.

Renal corpuscle

Urinary organs

Renal corpuscle

STRUCTURE & FUNCTION

Understand what you see.

Forms the initial plasma ultrafiltrate through the glomerular filtration barrier.

Zoom into the original labels. Practise pointing out each structure, then explain it aloud. Diagrams are teaching references; specimen appearance and slide staining vary.

01 / IDENTIFICATION

How to recognise it.

  1. Glomerular capillary tuft
  2. Bowman capsule surrounds urinary space
  3. Vascular and urinary poles differ
02 / KEY STRUCTURES

Point them out.

Tap a number to open its reference, zoom in and locate the structure. Numbers stay the same across views. This key follows landmarks visible in the reference images.

Related features & study points (1)

Additional relations, attachments or microscopic details to revise alongside this plate. These are separate from its numbered image landmarks.

  • Visceral and parietal layers
03 / VIVA PRACTICE

Think first. Then reveal.

Say your answer aloud before opening the suggested response.

01How do you identify renal corpuscle?
SUGGESTED ANSWER

Glomerular capillary tuft. Bowman capsule surrounds urinary space. Vascular and urinary poles differ.

02Name the principal filtration-barrier components.
SUGGESTED ANSWER

Fenestrated capillary endothelium, glomerular basement membrane and podocyte slit-diaphragm apparatus.

03Where is the macula densa?
SUGGESTED ANSWER

Specialised distal tubular cells near the vascular pole, as part of the juxtaglomerular apparatus.

04Which structures should you point out on this reference?
SUGGESTED ANSWER

Glomerulus; Bowman space; Visceral and parietal layers. Forms the initial plasma ultrafiltrate through the glomerular filtration barrier.

Read the references.

Credited anatomical plates, microscopy and university teaching references. Individual image credits appear below the viewer. Historical plates can use older terminology; use the lesson text for current names.
