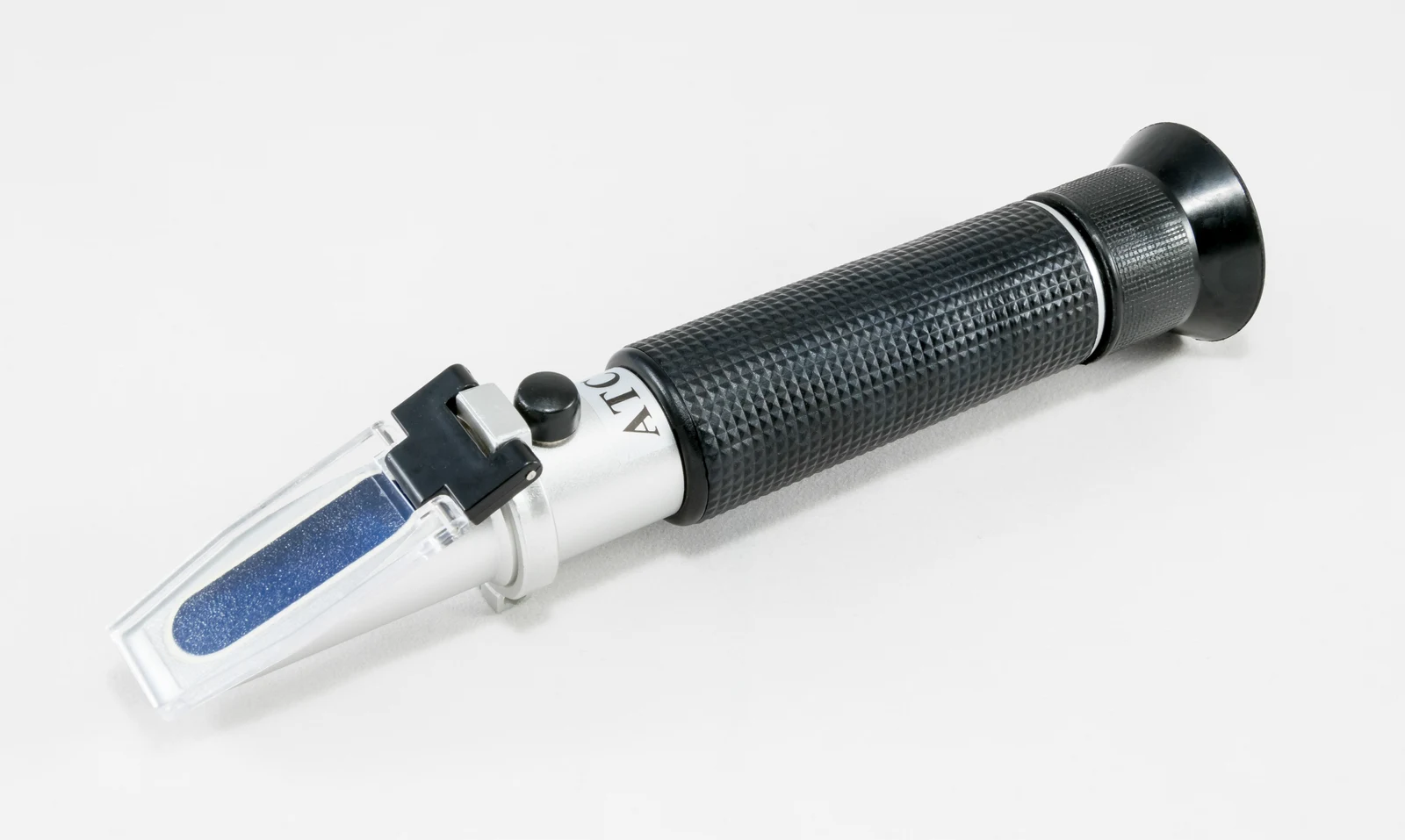

Handheld refractometer — reference view
Image: Jacek Halicki · Source / original · CC BY-SA 4.0Resized and converted to WebP; original colours retained.
Handheld refractometer
Optical refractometer · specific gravity
What is its use?
Estimates dissolved-solute concentration or specific gravity using the appropriate calibrated scale.
Tap a number to locate its part. Zoom, drag or use full screen to inspect the reference. Models and graduations can differ; check the actual apparatus used in your laboratory.
How to recognise it.
- Prism at one end
- Cover plate over sample area
- Eyepiece and focus adjustment
A Brix scale is not a urine-specific-gravity scale. The reference model must be checked before interpreting a reading.
Point them out.
Choose a part to bring its numbered marker into view.
The science behind the reading.
Refraction depends on optical properties of the sample; the instrument converts refractive index to a specified scale.
Think first. Then reveal.
Explain your answer aloud before opening it.
01What does it measure directly?+
An optical response related to refractive index, which is converted to a scale by calibration.
02Why check the scale?+
Brix, salinity and clinical specific-gravity scales are not interchangeable.
03Why calibrate as directed?+
A known reference establishes a reliable baseline for that model.
04Can all solutes affect the result equally?+
No. Interferences and the sample’s composition can affect the relation between refractive index and the reported value.
