Ultrasound transducer
Recognise an ultrasound probe and explain image generation and probe selection.
REFERENCE GALLERY1 / 1 reference
1
Scanning face
The patient-contact acoustic face of the reference probe; probe geometry varies by design.
Zoom in, then drag to inspect. Keyboard: + / − to zoom, arrows to pan, 0 to reset. Tap the numbered markers to explore parts.

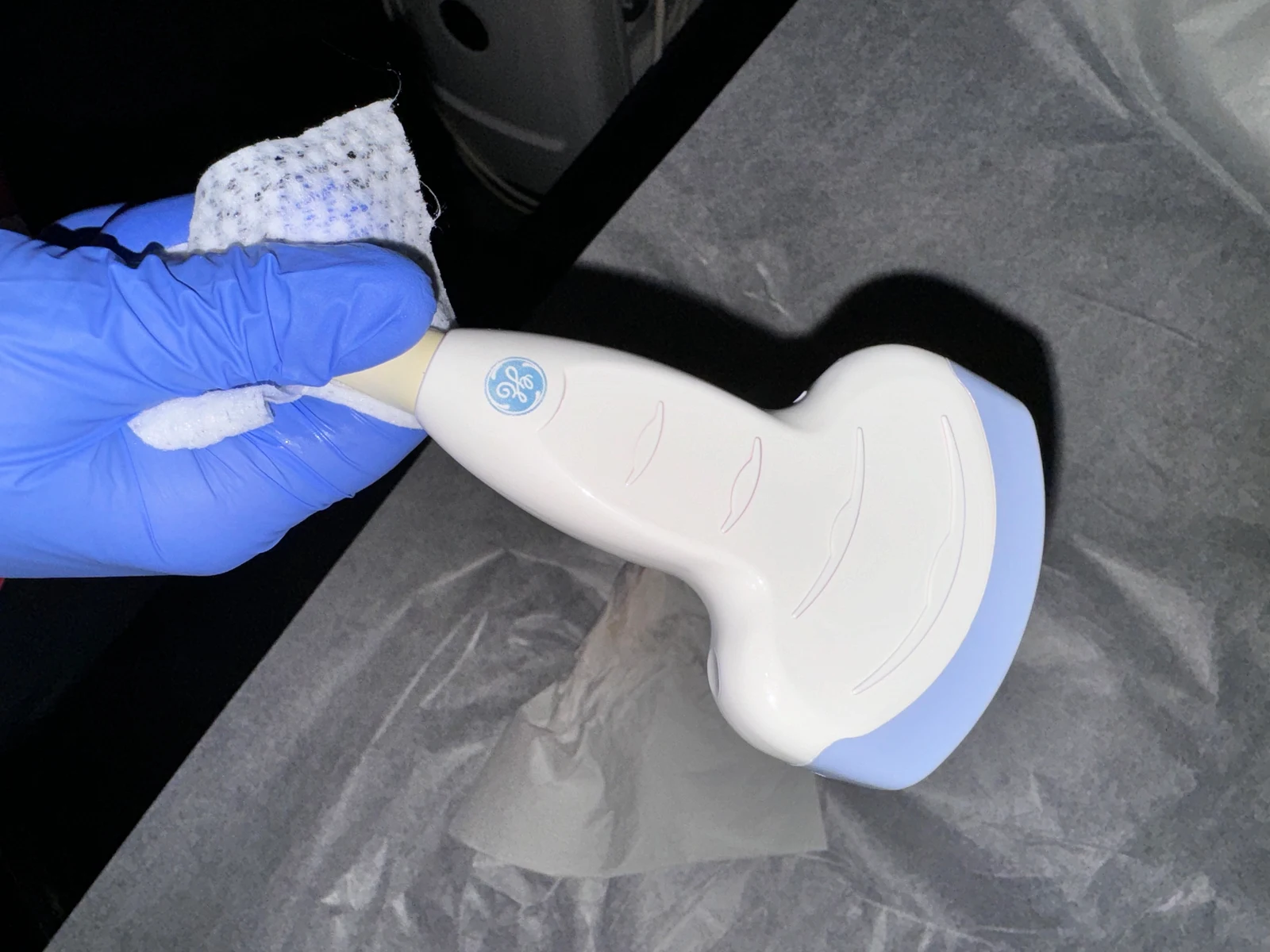

ultrasound probe — reference view
Image: Harrison Keely · Source / original · CC BY 4.0Resized and converted to WebP; original colours retained.
Identify and explain
A transducer sends and receives acoustic signals; processed echoes generate an image.
- Patient-contact footprint
- Transducer body
- Cable and scanner connection
Principle
Frequency, penetration and resolution are related.
Safety
Use clinically appropriate examinations and validated cleaning procedures.
At the viva table
Try answering aloud, then open the suggested answer. Examiner questions vary.
01 / Does ultrasound use ionising radiation?
No. It uses acoustic energy.
02 / Are all probes interchangeable?
No. Geometry and frequency range suit different applications.
03 / Why does orientation matter?
It links the displayed image to the patient’s anatomy.
04 / Does no ionising radiation mean unlimited non-medical use?
No. Ultrasound should still be used appropriately and with prudent exposure.
